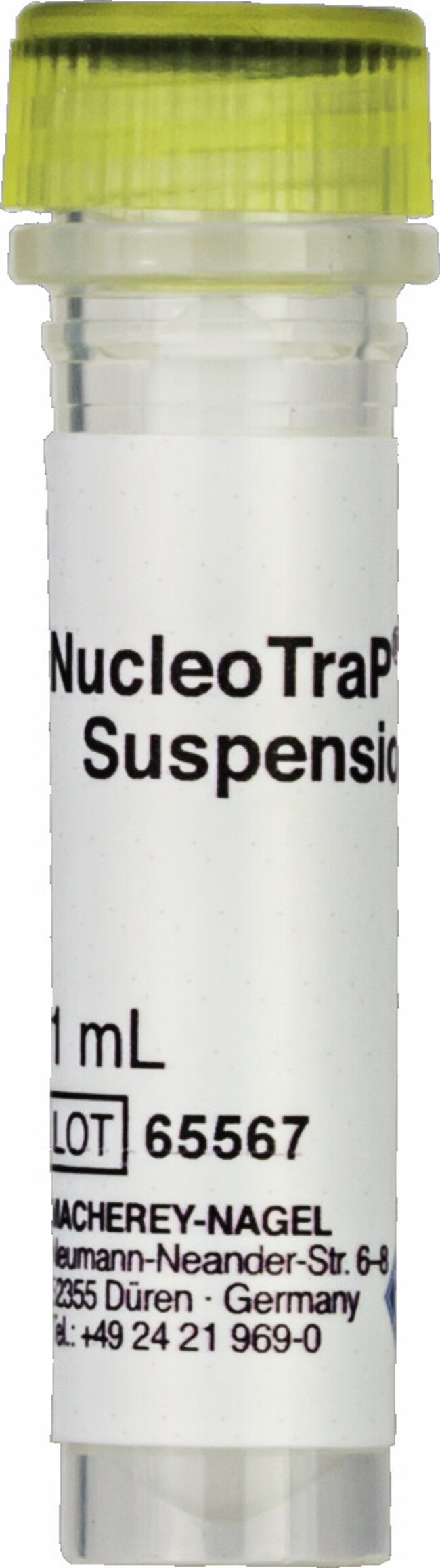

Macherey-Nagel™ NucleoTrap suspension for gel extraction

NucleoTrap™ is a silica matrix based kit for isolation of highly pure DNA fragments from agarose gels and aqueous solutions (desalination). The kit can also be used for the removal of nucleotides and/or biotin after labelling reactions as well as for the removal of enzymes.

By means of a specially activated spherical silica matrix it is possible to extract DNA fragments from agarose gels or solvents in a very mild manner, without the use of organic solvents. Nucleic acids are bound to the NucleoTrap™ matrix in the presence of a chaotropic salt. The hydrate shell of the nucleic acids is destroyed by this binding buffer, thus facilitating adsorption to the specially treated NucleoTrap™ matrix. A washing step is followed by the elution of DNA with low-salt elution buffer or distilled water.Kit components: NucleoTrap™ suspension, buffers.

• Silica matrix technology
• Fragment size: 20bp to 20kb
• Sample material: 20mg to 600mg agarose gel
• Elution volume: 20μL to 50μL
• Binding capacity: 6μg/10μL suspension
• Typical Recovery: 50% to 90%
• Preparation time: 60 min./6 preps
• Format: silica bead suspension

For extraction of DNA from agarose gels, suitable, for example, for subsequent cloning sequencing, PCR, restriction analysis. Support protocol for concentration and desalination of reaction mixtures.
