BINDER™ CO2 Incubator Series CB-S

Product Code. 31741128 Shop All BINDER Products
Change view
Click to view available options
Dimensions (D x W x H) Interior:
505 x 560 x 600 mm
575 x 620 x 750 mm
No. of Shelves:
2 std./6 max.
2 std./8 max.
Model:
CBS170
CBS170-L
CBS260
Unit Size:
Each
3 product options available for selection
Product selection table with 3 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Dimensions (D x W x H) Interior No. of Shelves Model unitSize
31741128 505 x 560 x 600 mm 2 std./6 max. CBS170 Each
31741118 505 x 560 x 600 mm 2 std./6 max. CBS170-L Each
31741122 575 x 620 x 750 mm 2 std./8 max. CBS260 Each
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 3 options available.
3 options
Product Code. 31741128 Supplier BINDER™ Supplier No. 90400219

Please to purchase this item. Need a web account? Register with us today!

6764.11 EUR valid until 2026-02-28
BEST PRICE on Promo! Use promo code "28001" to get your promotional price.

Description

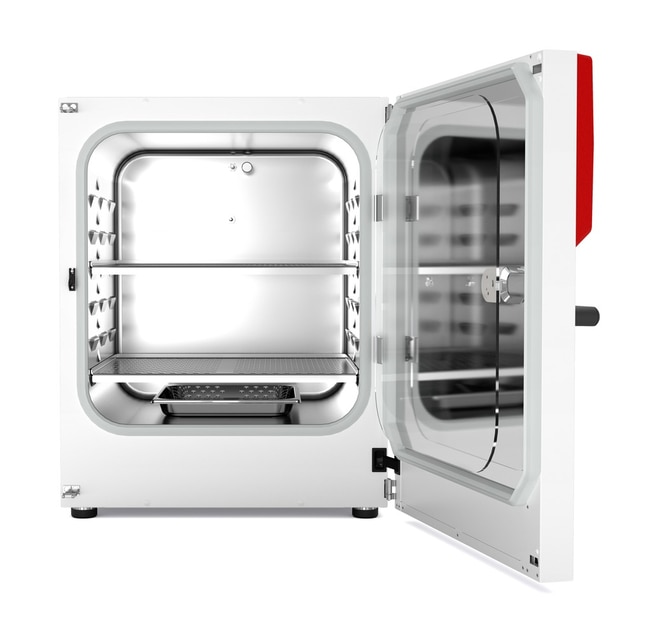

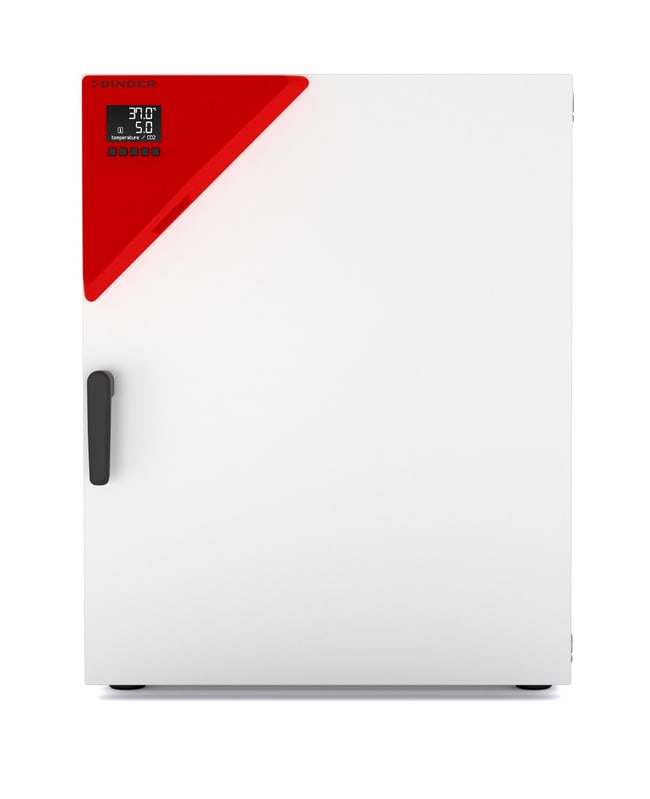

Series CB-S Solid.Line - CO2 incubators with hot air sterilization.

The durable and affordable CB-S series incubators are suitable for routine cell cultivation applications in the field of cell production, particularly in academic settings. They are contamination-proof due to 180°C hot air sterilization and reliably pH-stable thanks to the drift free infrared CO2 measurements conducted in real time.

  • Safe - cell cultures receive maximum protection against contamination
  • Reliable - constant well-being conditions for the cells
  • Smart - simple routine cleaning and convenient operation
  • Economical - efficient operation without consumables

IMPORTANT FEATURES

  • Temperature range: +6°C above ambient temperature to +50°C
  • Humidity range: 90 to 95% RH
  • CO2 control range: 0 to 20 vol.% CO2
  • Tried-and-tested anti-contamination concept with 180°C hot air sterilization
  • Humidification system with condensation protection
  • CO2 gas mixing jet with Venturi effect
  • CO2 sensor with infrared technology
  • LCD to display temperature and CO2, along with additional information, and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Tightly fitted inner door made of safety glass
  • Seamless stainless steel inner chamber
  • Perforated shelves, stainless steel
  • Troubleshooting system with visual and acoustic alarms
  • Interfaces: Ethernet, USB, zero-voltage alarm contact
  • Units can be stacked with stacking adapters; the CB-S is suitable for stacking with CB and CBF models of the same size

OPTIONAL EQUIPMENT

  • Copper interior fittings consisting of copper shelves and copper-plated water pan
  • Stacking adapter for secure, space-saving installation
  • CO2 gas tank changer for connecting two gas tanks to one or two incubators
  • CO2 shaker with corrosion-resistant components in a stainless-steel housing
  • APT-COM Multi Management Software - for managing, recording, and documenting unit parameters
  • Services - a wide range of services to ensure that the unit functions correctly

Specifications

Controller Type RD 4
Capacity (Metric) 170 L
Chamber Material Stainless Steel (304/1.4301)
CO2 Concentration Range 0 to 20%
CO2 Sensor Technology IR Sensor
Convection Type Natural
Material Stainless Steel
No. of Places 110
No. of Shelves 2 std./6 max.
Plug Type EU
Relative Humidity 90 to 95%
Temperature Range (Metric) +6 above ambient to 50°C
Type CO2 Incubator
Display Yes
Model CBS170
Temperature Uniformity 0.3 ± K
Dimensions (D x W x H) Interior 505 x 560 x 600 mm
Height (Metric) 870 mm
Depth (Metric) Interior 505 mm
Weight (Metric) 96 kg
Voltage 200/230 V
Frequency 50/60 Hz
